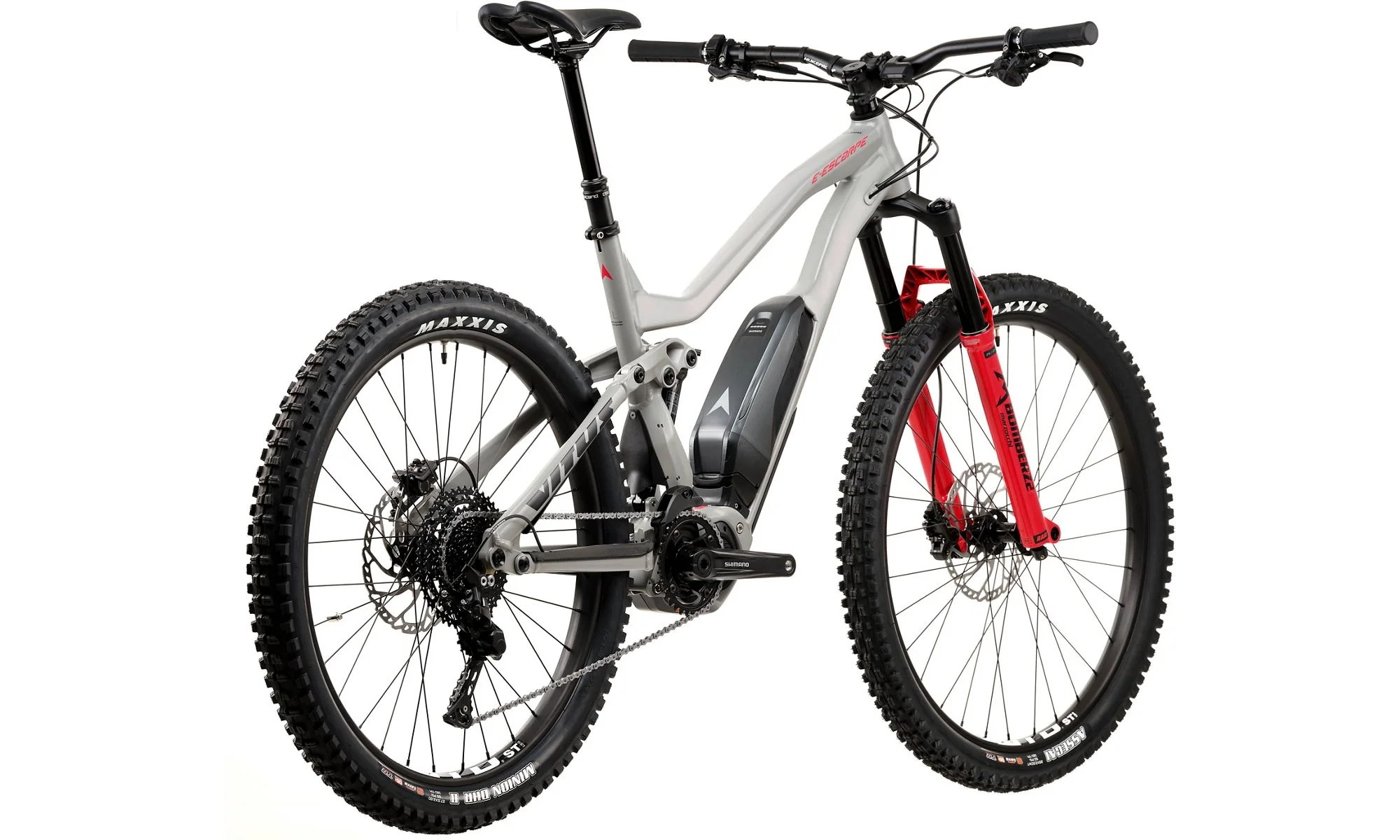

Vitus E-Escarpe
Everybody loves that picture-perfect view at the top of the mountain, right? Let our all new E-Escarpe open the doors to new adventures, making even the toughest climbs and terrain accessible.
The E-Escarpe shares all the traits of our award winning Escarpe platform, designed to bring you further, faster. With the reliable Shimano STEPS motor system, the E-Escarpe is ready to rip up the trails and take you to new heights.
The E-Escarpe is a smile inducing E-trail bike thanks to the modern geometry and quality suspension performance that the Marzocchi Bomber Z2 140mm E-bike specific forks and Rockshox Deluxe Select R rear shock provide. Pair that with the Shimano Deore M6000 10 Speed drivetrain, Shimano MT-501 brakes, and Shimano E7000 STEPS motor and now anything seems possible. Finished off with WTB ST rims, Maxxis 3C tubeless ready tyres, Nukeproof components and a Brand-X Ascend Dropper. The E-Escarpe is ready for an all-day trail shredding adventure.
- E-Escarpe 6061 Alloy Boost 140mm frame
- SHIMANO STEPS E7000 Motor
- Eco, trail or Boost Power modes
- Shimano Deore 10 speed drivetrain
- Shimano MT-501 brakes
- Tubeless Ready Maxxis 3C Tyres
Features:
Smile inducing E-Trail BikeModern Trail Geometry paired with Shimano STEPS Motor |
Frame Material6061-T6 Aluminium Alloy |
Wheel Size29"/27.5"+ |
Suspension Travel140mm Front, 140mm Rear |
WeightLarge: 22.5kg |
Specifications
 FRAMEeEscarpe 29"/27.5" 140mm travel full suspension eMTB frame Boost, 6061 Alloy, Shimano STEPS compatible |
 REAR RIMWTB ST i35 TCS 2.0, 27.5", 35mm inner diameter, 32 hole, Pinned Joint |
 FORKSMarzocchi Bomber Z2 29" eBIKE+ 140mm Boost 15mm x 110mm, Kabolt axle, 44mm offset, tapered, RAIL damper |
 FRONT HUBVITUS DHF112
Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT |
 SHOCKRoackshox Delux SELECT R 205X57.5 DEBONAIR, 3.5 TOKENS, LM TUNE, TRUNNION, 22mm x 8mm |
REAR HUBÂ VITUS M5ER Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT |
|
CHAINSETSHIMANO E8000 34T 165mm CHAIN LINE 53MM |
SPOKESWTB N/A |
|
BOTTOM BRACKETShimano E7000 N/A |
 FRONT TYREMAXXIS ASSEGAI 29"x2.5"WT, 3C MaxxTerra/EXO+/TR |
 FRONT DERAILLEUR0 N/A |
REAR TYREMAXXIS MINNION DHR2 27.5"x2.8", 3C MaxxTerra/EXO+/TR |
|
REAR DERAILLEURShimnao Deore 10 Speed RD-M6000, GS 10-SPEED, SHADOW PLUS |
 RESIN PAD(W/O FIN), 203mm 6-BOLT Rotor SM-RT66 |
 SL-M6000-IR, 10-SPEED RAPIDFIRE, I-Spec II |
 RESIN PAD(W/O FIN), 203mm 6-BOLT Rotor SM-RT66 |
 CASSETTESUNRACE 11-46T CSMS2 10spd 11-46T ED-BLACK |
 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter |
 N/A |
 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm |
|
N/A |
 ZS 44mm/56mm |
|
N/A |
Tapered, single alloy clamp, sticky rubber |
|
N/A |
0 |
|
60Nm Torque, DRIVE UNIT COVER SM-DUE70 |
31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm |
 TCS 2.0, 29", 30mm inner diameter, 32 hole, Pinned Joint |
34.9mm seat clap with quick release lever |
Original: $4,271.93
-70%$4,271.93
$1,281.58
